Rectangular power connector featuring 14 male pin contacts, designed for through-hole mounting with solder termination. This straight orientation plug offers a 6A current rating and a 600V voltage rating (AC/DC). Constructed with brass contacts plated in tin, copper, and gold, it operates within a temperature range of -40°C to 105°C. The connector is RoHS compliant and low halogen, with a natural color and a 4.2mm pitch.
Voltage Rating600V
Current Rating6A
MountingThrough Hole
Quick Jump:
Technical Specifications
Molex 39-31-0140 technical specifications.
General
| Color | Natural |
| Contact Gender | Male |
| Contact Material | Brass |
| Contact Plating | Tin, Copper, Gold |
| Contact Type | Male Pin |
| Current Rating | 6A |
| Depth | 11mm |
| Gender | Male |
| Glow Wire Compliant | Non-compliant |
| Halogen Free | Low Halogen |
| Length | 31mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 600V |
| Max Voltage Rating (DC) | 600V |
| Mount | Through Hole |
| Number of Circuits | 14 |
| Number of Contacts | 14 |
| Number of Ports | 1 |
| Number of Positions | 14 |
| Number of Rows | 2 |
| Orientation | Straight |
| Package Quantity | 150 |
| Packaging | Bulk |
| Pitch | 4.2mm |
| Plating | Tin |
| RoHS Compliant | Yes |
| Row Spacing | 0.165inch |
| Series | 5566 |
| Termination | Solder |
| Voltage Rating | 600V |
Compliance
| RoHS | Compliant |
Datasheet
Molex 39-31-0140 Datasheet
Download the complete datasheet for Molex 39-31-0140 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

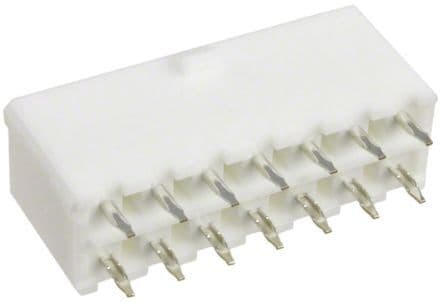

Product Images
