14-circuit, right-angle FFC/FPC connector featuring a through-hole, ZIF design with top contact style. This receptacle offers a 1.25mm lead pitch and 2.5mm pitch, with bronze contacts plated in tin. Rated for 1A current and 200V DC, it operates between -20°C and 80°C, with a UL94 V-0 flammability rating. Housing is PBT, polyester, or polybutylene in a natural color.
Voltage Rating200V
Current Rating1A
MountingThrough Hole
Quick Jump:
Technical Specifications
Molex 39-53-2144 technical specifications.
General
Actuator Material
PBT, Polyester, Polybutylene
Contact Location
Top
Contact Material
Bronze
Contact Plating
Tin
Current Rating
1A
Depth
9.8mm
Flammability Rating
UL94 V-0
Gender
Receptacle
Housing Color
Natural
Lead Pitch
1.25mm
Length
23.25mm
Max Current Rating
1A
Max Operating Temperature
80°C
Min Operating Temperature
-20°C
Mount
Through Hole
Number of Circuits
14
Number of Contacts
14
Number of Positions
14
Number of Rows
1
Orientation
Right Angle
Package Quantity
600
Packaging
Tray
Pitch
2.5mm
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
5597
Stackable
No
Termination
Solder
Voltage Rating
200V
DC Rated Voltage
200V
Wire/Cable Type
Straight
Compliance
RoHS
Compliant
Datasheet
Molex 39-53-2144 Datasheet
Download the complete datasheet for Molex 39-53-2144 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

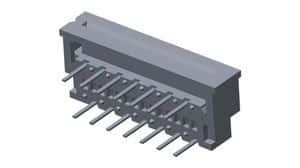

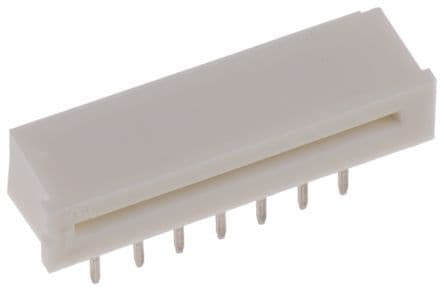

Product Images
