Technical Specifications
Molex 39532-1006 technical specifications.
General
| Color | Black |
| Contact Material | Brass |
| Contact Plating | Tin |
| Current | 15A |
| ELV | Compliant |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Housing Color | Black |
| Lead Free | Lead Free |
| Length | 32.5mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (DC) | 300.3kV |
| Mount | Through Hole |
| Number of Circuits | 6 |
| Number of Contacts | 6 |
| Number of Levels | 1 |
| Number of Positions Per Level | 6 |
| Number of Rows | 1 |
| Orientation | Right Angle |
| Package Quantity | 1 |
| Packaging | Bulk |
| Pitch | 5.08mm |
| Series | Eurostyle™ ESE 39532 |
| Termination | Solder |
| Voltage | 300V |
| Width | 12mm |
Compliance
| RoHS | Compliant |
Datasheet
Molex 39532-1006 Datasheet
Download the complete datasheet for Molex 39532-1006 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

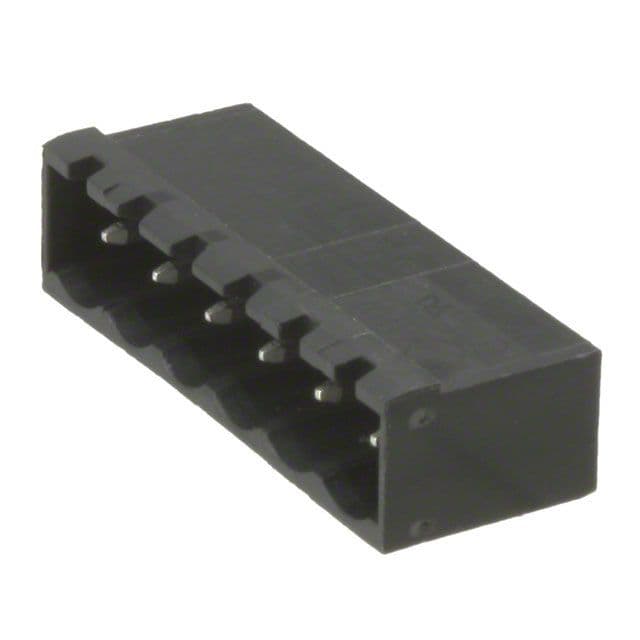

Product Images
