4-position, 5.08mm pitch pluggable terminal block with vertical, through-hole mounting. Features brass contacts with tin plating, rated for 10A and 300V AC. Constructed from UL94 V-0 rated black nylon, this connector accepts wire gauges from 22 to 14 AWG. It is RoHS compliant and designed for flexible flat cable/flexible printed circuit applications.
Voltage Rating300V
Current Rating10A
MountingThrough Hole
Quick Jump:
Technical Specifications
Molex 39980-0404 technical specifications.
General
Color
Black
Contact Material
Brass
Contact Plating
Tin
Current Rating
10A
Depth
17.8mm
ELV
Compliant
Flammability Rating
UL94 V-0
Gender
Male
Halogen Free
Low Halogen
Height
17.8mm
Length
20.93mm
Material
Nylon
Mount
Through Hole
Number of Circuits
4
Number of Contacts
4
Number of Poles
4
Number of Positions
4
Number of Rows
1
Orientation
Vertical
Package Quantity
1250
Packaging
Bulk
Pitch
5.08mm
Plating
Tin
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
39980
Termination
Solder
Voltage Rating
300V
Voltage Rating (AC)
300V
Width
15.7mm
Wire Gauge (Max)
14AWG
Wire Gauge (Min)
22AWG
Compliance
RoHS
Compliant
Datasheet
Molex 39980-0404 Datasheet
Download the complete datasheet for Molex 39980-0404 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

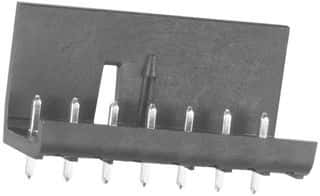

Product Images
