Technical Specifications
Molex 42815-0011 technical specifications.
General
| Contact Material | Copper Alloy |
| Contact Plating | Tin |
| Contact Type | Signal |
| Current Rating | 32A |
| Gender | Female |
| Lead Free | Lead Free |
| Length | 28.1mm |
| Max Current Rating | 50A |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Cable |
| Orientation | Straight |
| Package Quantity | 100 |
| Packaging | Bulk |
| RoHS Compliant | Yes |
| Series | Mini-Fit Sr |
| Shielding | Unshielded |
| Termination | Crimp |
| Voltage Rating (AC) | 250V |
| Wire Gauge (Max) | 12AWG |
| Wire Gauge (Min) | 10AWG |
| Wire/Cable Diameter | 5.3mm |
| Wire/Cable Gauge | 10AWG |
Compliance
| RoHS | Compliant |
Datasheet
Molex 42815-0011 Datasheet
Download the complete datasheet for Molex 42815-0011 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

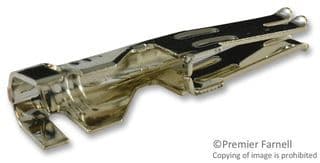

Product Images
