Voltage Rating250V
Current Rating5A
MountingCable
Quick Jump:
Technical Specifications
Molex 43025-0408 technical specifications.
General
| Contact Type | Socket |
| Current Rating | 5A |
| Flammability Rating | UL94 V-0 |
| Gender | Receptacle |
| Glow Wire Compliant | Compliant |
| Halogen Free | Low Halogen |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Cable |
| Number of Contacts | 4 |
| Number of Positions | 4 |
| Number of Rows | 2 |
| Orientation | Straight |
| Package Quantity | 2500 |
| Packaging | Bulk |
| Pitch | 3mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Row Spacing | 3mm |
| Series | 43025 |
| Voltage Rating | 250V |
Compliance
| RoHS | Compliant |
Datasheet
Molex 43025-0408 Datasheet
Download the complete datasheet for Molex 43025-0408 to view detailed technical specifications.
No datasheet is available for this part.

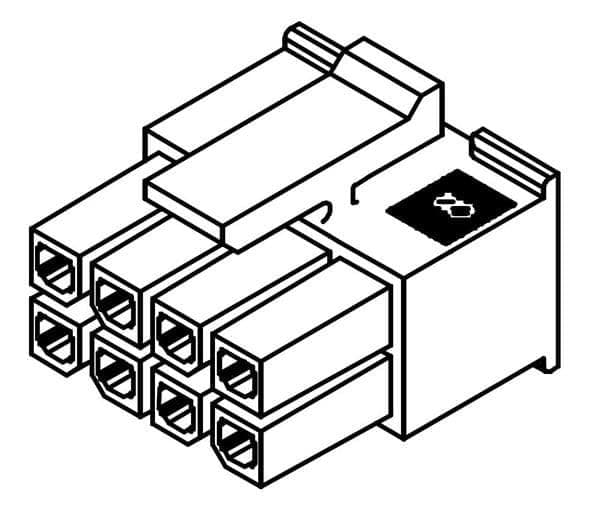

Product Images
