12-position, 2-row female receptacle connector with straight orientation and 3mm pitch. Features crimp termination, locking mechanism, and a black polyester insulator. Rated for 250V AC/DC and 5A current, with a maximum operating temperature of 105°C. Approvals include UL, CSA, and TUV, with UL94 V-0 flammability rating.
Voltage Rating250V
Current Rating5A
MountingCable, Free Hanging
Quick Jump:
Technical Specifications
Molex 43025-1200 technical specifications.
General
| Approvals | UL, CSA, TUV |
| Color | Black |
| Contact Gender | Female |
| Contact Material | Bronze |
| Contact Plating | Tin |
| Current Rating | 5A |
| Depth | 14mm |
| Flammability Rating | UL94 V-0 |
| Gender | Female |
| Glow Wire Compliant | Non-compliant |
| Housing Color | Black |
| Lead Free | Lead Free |
| Length | 18.85mm |
| Material | Polyester |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 600V |
| Max Voltage Rating (DC) | 600.6kV |
| Mount | Cable, Free Hanging |
| Number of Circuits | 12 |
| Number of Contacts | 12 |
| Number of Poles | 12 |
| Number of Positions | 12 |
| Number of Rows | 2 |
| Orientation | Straight |
| Package Quantity | 1500 |
| Packaging | Bulk |
| Pitch | 3mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | 43025 |
| Termination | Crimp |
| Voltage Rating (AC) | 250V |
| DC Rated Voltage | 250V |
| Working Voltage | 250V |
Compliance
| RoHS | Compliant |
Datasheet
Molex 43025-1200 Datasheet
Download the complete datasheet for Molex 43025-1200 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

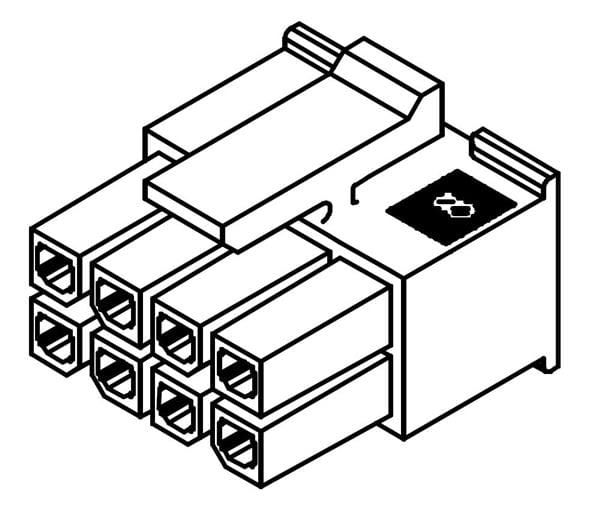

Product Images
