Female signal contact for cable mounting, featuring a straight orientation and crimp termination. Constructed with bronze and gold contact material, plated with gold and tin, this component offers a 5A max current rating and 250V DC rated voltage. Operating temperature range is -40°C to 105°C, with a 0.4mm pitch and dimensions of 11.25mm length, 2.54mm depth, and 2.29mm height. Supports wire gauges from 24AWG to 20AWG, is RoHS compliant, low halogen, and lead-free.
MountingCable
Quick Jump:
Technical Specifications
Molex 43030-0008 technical specifications.
General
Contact Gender
Female
Contact Material
Bronze, Gold
Contact Plating
Gold
Contact Type
Signal
Depth
2.54mm
Gender
Female
Halogen Free
Low Halogen
Height
2.29mm
Lead Free
Lead Free
Length
11.25mm
Max Current Rating
5A
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Mount
Cable
Orientation
Straight
Package Quantity
12000
Packaging
Bulk
Pitch
0.4mm
Plating
Tin
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
43030
Shielding
Unshielded
Termination
Crimp
DC Rated Voltage
250V
Wire Gauge (Max)
20AWG
Wire Gauge (Min)
24AWG
Wire/Cable Gauge
24AWG
Compliance
RoHS
Compliant
Datasheet
Molex 43030-0008 Datasheet
Download the complete datasheet for Molex 43030-0008 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

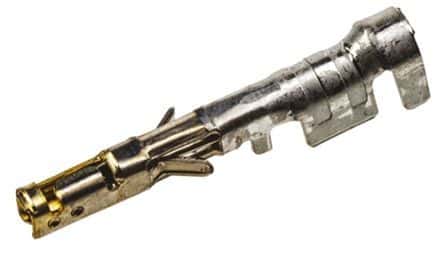

Product Images
