Male signal terminal for cable mounting, featuring a straight orientation and crimp termination. Constructed with bronze, brass, tin, and gold contact materials, and plated with gold over tin to a thickness of 30µin. Rated for 5A current and 250V voltage, operating within a temperature range of -40°C to 105°C. Supports wire gauges from 24AWG to 20AWG. This low halogen, lead-free component is RoHS compliant.
Voltage Rating250V
Current Rating5A
MountingCable
Quick Jump:
Technical Specifications
Molex 43031-0009 technical specifications.
General
Contact Gender
Male
Contact Material
Bronze, Brass, Tin, Gold
Contact Plating
Gold
Contact Type
Signal
Current Rating
5A
Gender
Male
Halogen Free
Low Halogen
Lead Free
Lead Free
Max Current Rating
5A
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Mount
Cable
Number of Contacts
3
Orientation
Straight
Package Quantity
12000
Packaging
Bag
Plating
Tin
Plating Thickness
30uin
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
43031
Shielding
Unshielded
Termination
Crimp
Voltage Rating
250V
DC Rated Voltage
250V
Wire Gauge (Max)
20AWG
Wire Gauge (Min)
24AWG
Wire/Cable Gauge
20AWG
Compliance
RoHS
Compliant
Datasheet
Molex 43031-0009 Datasheet
Download the complete datasheet for Molex 43031-0009 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

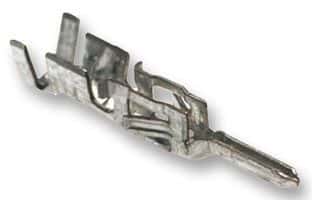

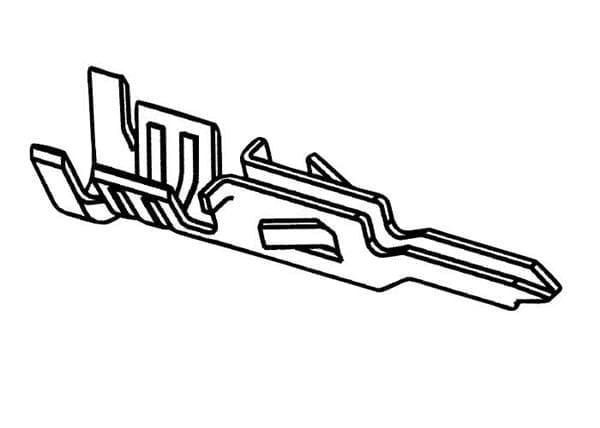

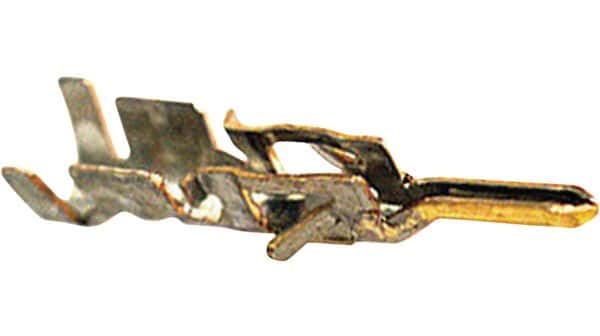

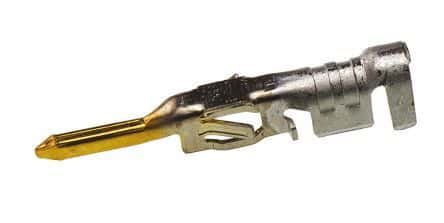

Product Images
