Technical Specifications
Molex 43045-1423 technical specifications.
General
| Contact Material | Brass |
| Contact Plating | Gold |
| Current Rating | 5A |
| Gender | Male |
| Glow Wire Compliant | Compliant |
| Halogen Free | Low Halogen |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Number of Circuits | 14 |
| Number of Contacts | 14 |
| Number of Positions | 14 |
| Number of Rows | 2 |
| Orientation | Right Angle |
| Package Quantity | 936 |
| Packaging | Tray |
| Pitch | 3mm |
| RoHS Compliant | Yes |
| Row Spacing | 3mm |
| Series | 43045 |
| Termination | Solder |
| Voltage Rating | 600V |
Compliance
| RoHS | Compliant |
Datasheet
Molex 43045-1423 Datasheet
Download the complete datasheet for Molex 43045-1423 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

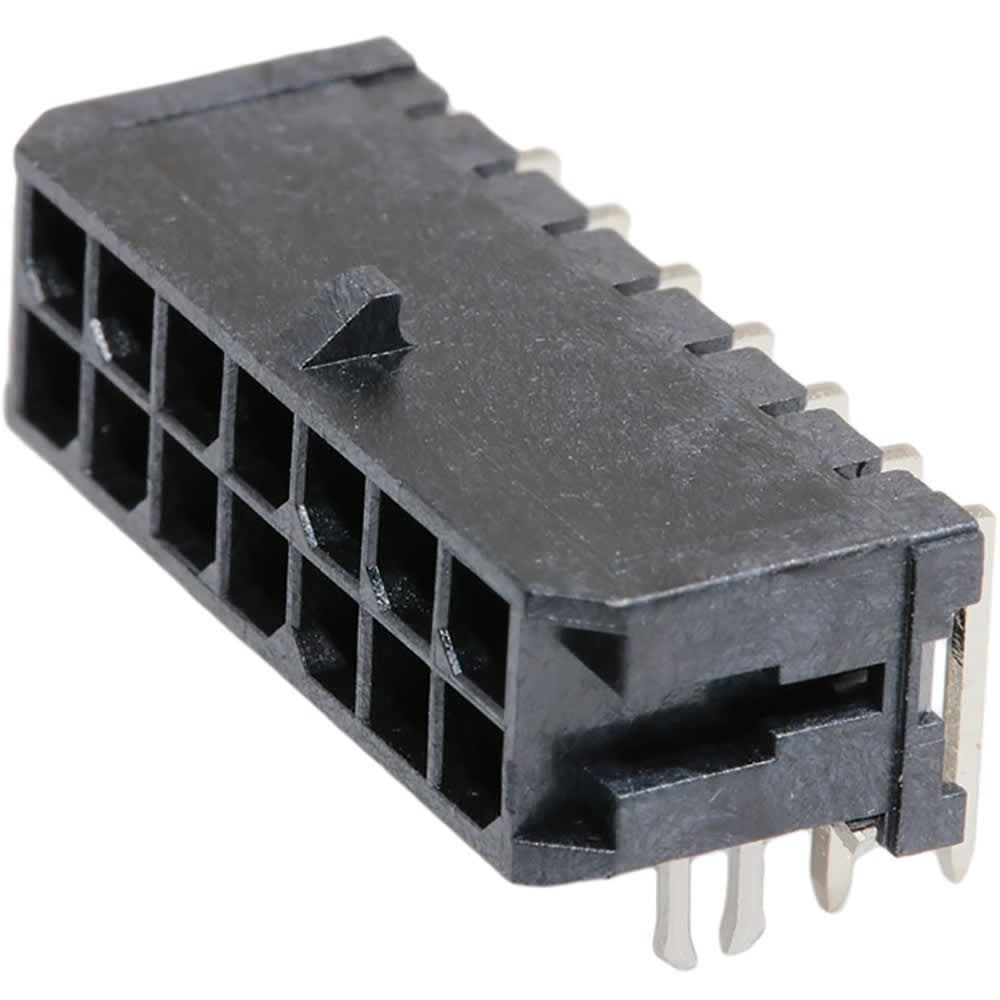

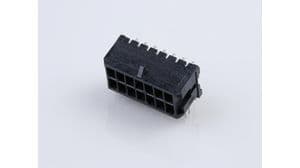

Product Images
