16-contact, female, right-angle modular connector with a through-hole solder terminal and locking mechanism. Features gold-plated bronze and brass contacts, a 1.5A current rating, and a 150V AC voltage rating. Designed for telecom and datacom applications, this shielded connector has a black housing, a pitch of 2.54mm, and operates within a temperature range of -40°C to 85°C. It is UL94 V-0 flammability rated and RoHS compliant.
Current Rating1.5A
MountingThrough Hole
Quick Jump:
Technical Specifications
Molex 43223-8128 technical specifications.
General
Color
Black
Contact Material
Bronze, Brass
Contact Plating
Gold
Current Rating
1.5A
Depth
20.57mm
Direction
Down
Flammability Rating
UL94 V-0
Gender
Female
Housing Color
Black
Lead Free
Lead Free
Length
30.48mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
125V
Mount
Through Hole
Number of Contacts
16
Number of Ports
2
Number of Positions
8
Number of Positions Loaded
16
Number of Rows
1
Orientation
Right Angle
Package Quantity
1
Packaging
Tray
Pitch
2.54mm
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
43223
Shielding
Shielded
Termination
Through Hole
Voltage Rating (AC)
150V
DC Rated Voltage
125V
Width
16.1mm
Compliance
RoHS
Compliant
Datasheet
Molex 43223-8128 Datasheet
Download the complete datasheet for Molex 43223-8128 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

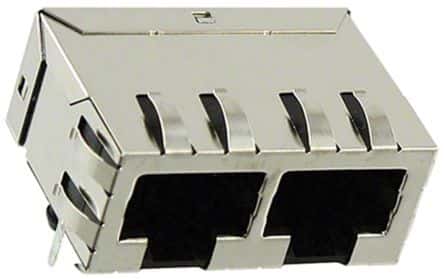

Product Images
