Molex
43650-0219
2-Position 2-Contact Brass/Gold Rectangular Connector, 600V, 5A, Surface Mount/Through Hole
This Molex 43650 series connector features brass contacts with gold plating, supporting up to 5A and 600V. Operating temperature ranges from -40°C to 105°C. The connector is compliant with RoHS regulations and has low halogen content. It is available in a tray packaging with 3264 pieces per package, and has a 3mm pitch. The connector is suitable for surface mount and through hole mounting.
Voltage Rating600V
Current Rating5A
MountingSurface Mount, Through Hole
Quick Jump:
Technical Specifications
Molex 43650-0219 technical specifications.
General
| Contact Material | Brass |
| Contact Plating | Gold |
| Current Rating | 5A |
| Gender | Male |
| Glow Wire Compliant | Compliant |
| Halogen Free | Low Halogen |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount, Through Hole |
| Number of Circuits | 2 |
| Number of Contacts | 2 |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Orientation | Vertical |
| Package Quantity | 3264 |
| Packaging | Tray |
| Pitch | 3mm |
| RoHS Compliant | Yes |
| Series | 43650 |
| Termination | Solder |
| Voltage Rating | 600V |
Compliance
| RoHS | Compliant |
Datasheet
Molex 43650-0219 Datasheet
Download the complete datasheet for Molex 43650-0219 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

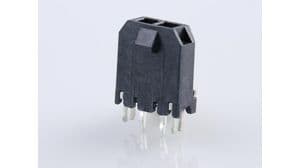

Product Images
