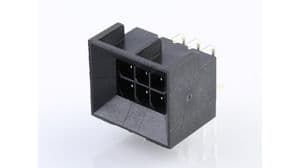

This 6-position right angle header features a current rating of 5A and a DC rated voltage of 250V. It has 6 contacts and is made from brass with a tin plating. The header is packaged in a tray and is compliant with RoHS regulations. It is also compliant with Reach SVHC regulations and has a flammability rating of UL94 V-0.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Molex 44428-0601 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Color | Black |
| Contact Material | Brass |
| Contact Plating | Tin |
| Current Rating | 5A |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Glow Wire Compliant | Non-compliant |
| Height | 11.9mm |
| Housing Color | Black |
| Lead Free | Contains Lead |
| Length | 16mm |
| Number of Circuits | 6 |
| Number of Contacts | 6 |
| Number of Positions | 6 |
| Number of Rows | 2 |
| Orientation | Right Angle |
| Packaging | Tray |
| Reach SVHC Compliant | Yes |
| RoHS Compliant | Yes |
| DC Rated Voltage | 250V |
| Width | 11.6mm |
| RoHS | Compliant |
