MOLEX

44620-0002

Datasheet

8 Pos Female Right Angle Telecom/Datacom Connector, Shielded, Solder, 1.5A, 150V

Molex

44620-0002

Name: 44620-0002 Molex
Brand: Molex
SKU: 44620-0002

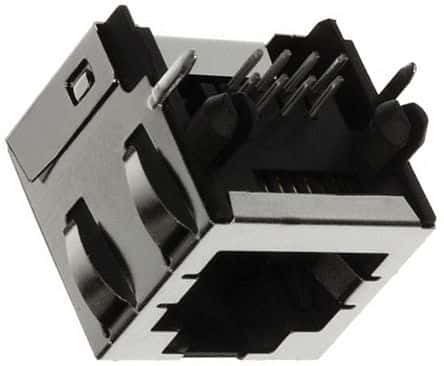

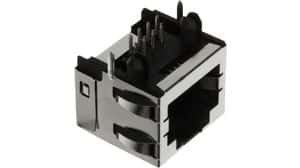

8 Pos Female Right Angle Telecom/Datacom Connector, Shielded, Solder, 1.5A, 150V

Right angle, shielded telecom and datacom connector featuring 8 contacts and 1 port. This female connector offers a 1.5A current rating and 150V voltage rating, with gold-plated bronze and brass contacts. Designed for through-hole, panel, and board mounting, it operates between -40°C and 85°C and boasts a UL94 V-0 flammability rating. The black housing is polarized, and the connector is RoHS compliant.

Voltage Rating150V

Current Rating1.5A

MountingThrough Hole, Panel, Board

Quick Jump:

Technical Specifications

Molex 44620-0002 technical specifications.

General

Additional Feature	POLARIZED
Body/Shell Style	JACK
Color	Black
Contact Gender	Female
Contact Material	Bronze, Brass
Contact Plating	Gold
Current Rating	1.5A
Depth	15.75mm
DIN Conformance	No
Direction	Up
Empty Shell	No
Filter Feature	No
Flammability Rating	UL94 V-0
Gender	Female
Housing Color	Black
IEC Conformance	No
Length	16.17mm
Manufacturer Series	44620
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Max Operating Temperature	85°C
Max Voltage Rating (AC)	150V
MIL Conformance	No
Min Operating Temperature	-40°C
Mixed Contacts	No
Mount	Through Hole, Panel, Board
Mounting Style	RIGHT ANGLE
Number of Contacts	8
Number of Ports	1
Number of Positions	8
Number of Positions Loaded	8
Number of Rows	1
Option	General Purpose
Orientation	Right Angle
Package Quantity	720
Packaging	Tray
Pitch	2.04mm
Plating	Tin
Radiation Hardening	No
RoHS Compliant	Yes
Series	44620
Shell Material	Brass
Shielding	Shielded
Termination	Solder
Voltage Rating	150V
DC Rated Voltage	150V
Width	13.46mm
