7-position, 1-port straight SATA plug connector with 1.27mm pitch. Features brass contacts with gold plating and tin plating, rated for 15V and 1.5A. Through-hole mounting with solder termination, operating temperature range of -35°C to 85°C. Non-compliant with glow wire standards, RoHS compliant.
Voltage Rating15V
Current Rating1.5A
MountingThrough Hole
Quick Jump:
Technical Specifications
Molex 47155-4001 technical specifications.
General
Color
Black
Contact Material
Brass
Contact Plating
Gold
Current Rating
1.5A
Depth
6.45mm
Gender
Male
Glow Wire Compliant
Non-compliant
Length
16.9mm
Max Operating Temperature
85°C
Min Operating Temperature
-35°C
Mount
Through Hole
Number of Circuits
7
Number of Contacts
7
Number of Ports
1
Number of Positions
7
Number of Rows
1
Orientation
Straight
Package Quantity
4800
Packaging
Tray
Pitch
1.27mm
Plating
Tin
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
47155
Termination
Solder
Voltage Rating
15V
Compliance
RoHS
Compliant
Datasheet
Molex 47155-4001 Datasheet
Download the complete datasheet for Molex 47155-4001 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

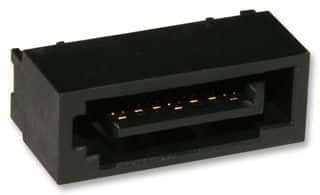

Product Images
