Voltage Rating30V
Current Rating1.8A
MountingThrough Hole
Quick Jump:
Technical Specifications
Molex 48393-0003 technical specifications.
General
Contact Material
Copper, Copper Alloy
Contact Plating
Gold, Tin, Matte
Current Rating
1.8A
Depth
14.25mm
Gender
Receptacle
Halogen Free
Low Halogen
Length
13.8mm
Max Operating Temperature
85°C
Min Operating Temperature
-20°C
Max Voltage Rating (AC)
30V
Mount
Through Hole
Number of Circuits
9
Number of Contacts
9
Number of Ports
1
Number of Rows
2
Orientation
Right Angle
Packaging
Tape and Reel
Plating
Gold
Reach SVHC Compliant
Unknown
Series
48393
Termination
Solder
USB Standard
USB 3.0
Voltage Rating
30V
Compliance
RoHS
Compliant
Datasheet
Molex 48393-0003 Datasheet
Download the complete datasheet for Molex 48393-0003 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

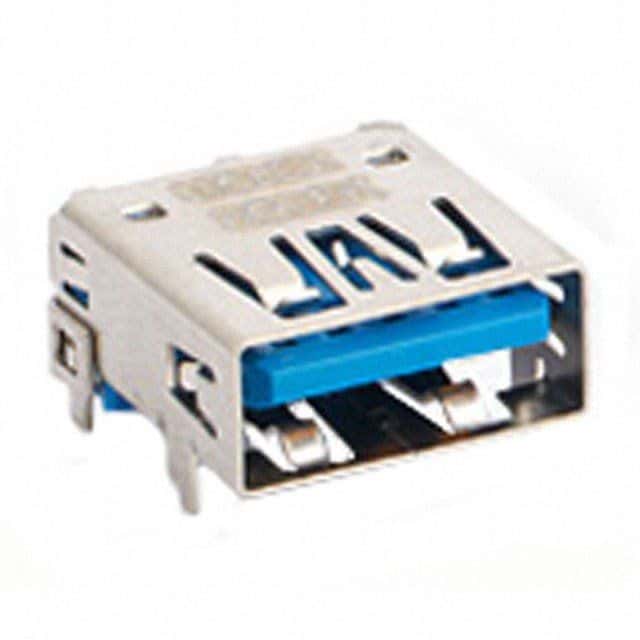

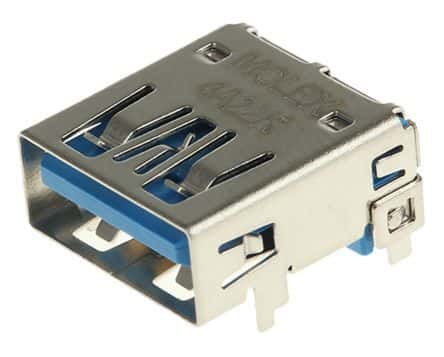

Product Images
