Voltage Rating30V
Current Rating1.8A
MountingThrough Hole
Quick Jump:
Technical Specifications
Molex 48395-0003 technical specifications.
General
Contact Material
Copper, Copper Alloy
Contact Plating
Gold, Tin, Matte
Current Rating
1.8A
Depth
16.37mm
Gender
Receptacle
Halogen Free
Low Halogen
Length
15.7mm
Max Operating Temperature
85°C
Min Operating Temperature
-20°C
Max Voltage Rating (AC)
30V
Mount
Through Hole
Number of Circuits
9
Number of Contacts
9
Number of Ports
1
Orientation
Right Angle
Packaging
Tape and Reel
Reach SVHC Compliant
Unknown
Series
48395
Termination
Solder
USB Standard
USB 3.0
Voltage Rating
30V
Compliance
RoHS
Compliant
Datasheet
Molex 48395-0003 Datasheet
Download the complete datasheet for Molex 48395-0003 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

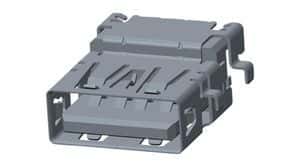

Product Images
