Voltage Rating30V
Current Rating1.8A
MountingThrough Hole
Quick Jump:
Technical Specifications
Molex 48397-0003 technical specifications.
General
Contact Material
Copper, Copper Alloy
Contact Plating
Gold
Current Rating
1.8A
Gender
Receptacle
Halogen Free
Low Halogen
Max Operating Temperature
85°C
Min Operating Temperature
-20°C
Mount
Through Hole
Number of Circuits
9
Number of Contacts
9
Number of Ports
1
Orientation
Right Angle
Packaging
Cut Tape
Reach SVHC Compliant
Unknown
Series
48397
Termination
Through Hole
USB Standard
USB 3.0
Voltage Rating
30V
Compliance
RoHS
Compliant
Datasheet
Molex 48397-0003 Datasheet
Download the complete datasheet for Molex 48397-0003 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

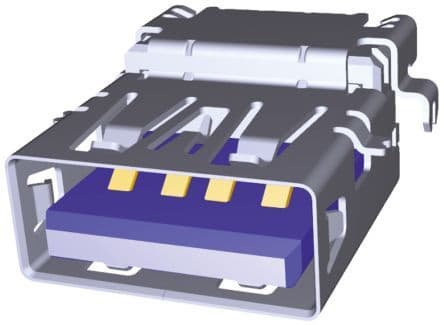

Product Images
