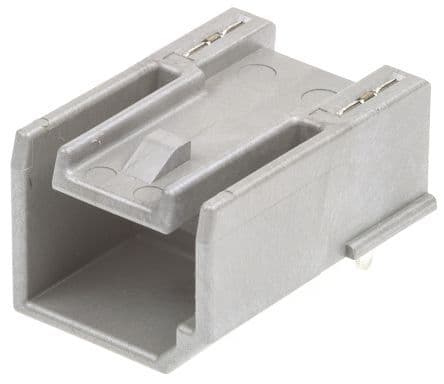

5-position, 5-contact right-angle male connector with solder termination and a 1.6mm pitch. Features a shielded design with copper alloy contacts plated in gold and tin, rated for 1A current and 5V AC/DC. This through-hole mount component operates between -40°C and 85°C, is UL94 V-0 flammability rated, and RoHS compliant.
Voltage Rating5V
Current Rating1A
MountingThrough Hole, Horizontal
Quick Jump:
Technical Specifications
Molex 49616-0715 technical specifications.
General
| Color | Grey, Black |
| Contact Material | Copper Alloy, Copper |
| Contact Plating | Gold |
| Current Rating | 1A |
| Features | Shielded |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Glow Wire Compliant | Non-compliant |
| Halogen Free | Low Halogen |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 5V |
| Mount | Through Hole, Horizontal |
| Number of Circuits | 5 |
| Number of Contacts | 5 |
| Number of Ports | 1 |
| Number of Positions | 5 |
| Number of Rows | 1 |
| Orientation | Right Angle |
| Package Quantity | 1 |
| Packaging | Bulk |
| Pitch | 1.6mm |
| Plating | Tin |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | HSAutoLink™ 49616 |
| Termination | Solder |
| USB Standard | USB 2.0 |
| Voltage Rating | 5V |
Compliance
| RoHS | Compliant |
Datasheet
Molex 49616-0715 Datasheet
Download the complete datasheet for Molex 49616-0715 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
