40-position, 2-row shrouded header with 1mm pitch for surface mount applications. Features male pin contacts with gold-plated bronze material and square contact shape. Offers a 1A current rating and 50V voltage rating, operating between -40°C and 85°C. Constructed with UL94 V-0 rated natural nylon insulation and packaged on tape and reel.
Voltage Rating50V
Current Rating1A
MountingSurface Mount
Quick Jump:
Technical Specifications
Molex 501190-4017 technical specifications.
General
| Contact Finish - Mating | GOLD |
| Contact Material | Bronze |
| Contact Plating | Gold |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating | 1A |
| Depth | 7.27mm |
| Flammability Rating | UL94 V-0 |
| Housing Color | Natural |
| Insulation Color | Natural |
| Insulation Material | Nylon |
| Lead Free | Lead Free |
| Length | 22.3mm |
| Mated Stacking Heights | 6.8mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Circuits | 40 |
| Number of Contacts | 40 |
| Number of Positions | 40 |
| Number of Rows | 2 |
| Orientation | Vertical |
| Package Quantity | 1100 |
| Packaging | Tape and Reel |
| Pitch | 1mm |
| Plating | Gold |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | Pico-Clasp 501190 |
| Termination | Solder |
| Voltage Rating | 50V |
| DC Rated Voltage | 50V |
Compliance
| RoHS | Compliant |
Datasheet
Molex 501190-4017 Datasheet
Download the complete datasheet for Molex 501190-4017 to view detailed technical specifications.
No datasheet is available for this part.

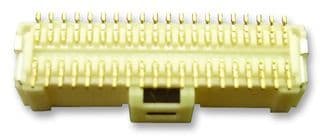

Product Images
