MOLEX

50125-8100

Male Crimp Terminal, 1.25mm Pitch, 1A, 26AWG, Tin/Gold/Bronze

Molex

50125-8100

Name: 50125-8100 Molex
Brand: Molex
SKU: 50125-8100

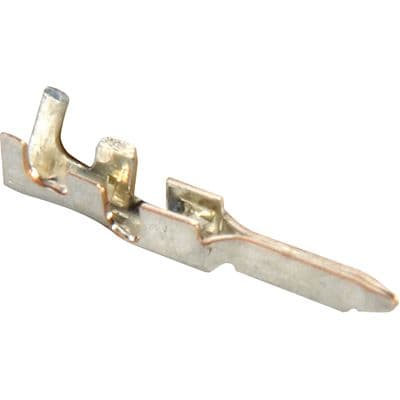

Male Crimp Terminal, 1.25mm Pitch, 1A, 26AWG, Tin/Gold/Bronze

Male wire terminal for signal applications, featuring a 1.25mm pitch and straight orientation. Constructed with bronze and brass contacts, plated with tin, gold, and bronze, this component supports a 1A current rating and 125V voltage rating. It is designed for through-hole or cable mounting, accommodating wire gauges from 28AWG to 26AWG. The low halogen, RoHS compliant assembly is supplied in bulk packaging.

Voltage Rating125V

Current Rating1A

MountingThrough Hole, Cable

Quick Jump:

Technical Specifications

Molex 50125-8100 technical specifications.

General

Contact Gender	Male
Contact Material	Bronze, Brass
Contact Plating	Tin, Gold, Bronze
Contact Type	Signal
Current Rating	1A
Depth	8.53mm
Gender	Male
Halogen Free	Low Halogen
Height	23.09mm
Housing Color	Black
Length	52.32mm
Max Current Rating	1A
Max Operating Temperature	105°C
Min Operating Temperature	-65°C
Max Voltage Rating (AC)	250V
Mount	Through Hole, Cable
Number of Contacts	26
Number of Rows	2
Orientation	Straight
Package Quantity	30000
Packaging	Bulk
Pitch	1.25mm
Reach SVHC Compliant	Unknown
RoHS Compliant	Yes
Series	PicoBlade
Shielding	Unshielded
Termination	Crimp
Voltage Rating	125V
DC Rated Voltage	125V
Wire Gauge (Max)	26AWG
Wire Gauge (Min)	28AWG
Wire/Cable Gauge	28AWG
