Right-angle shrouded header with 5 positions and a 1mm pitch. Features male pin contacts with tin plating over bronze and brass for mating. Rated for 1A current and 50V AC/DC, with a 5.05kV DC voltage rating. Surface mount termination with solder connection, housed in natural nylon with UL94 V-0 flammability. Operates between -40°C and 85°C, supplied on tape and reel.
Voltage Rating50V
Current Rating1A
MountingSurface Mount
Quick Jump:
Technical Specifications
Molex 501568-0507 technical specifications.
General
| Contact Finish - Mating | TIN |
| Contact Material | Bronze, Brass |
| Contact Plating | Tin |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating | 1A |
| Depth | 5.35mm |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Glow Wire Compliant | Non-compliant |
| Housing Color | Natural |
| Insulation Color | Natural |
| Insulation Material | Nylon |
| Lead Free | Lead Free |
| Length | 7mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 50V |
| Max Voltage Rating (DC) | 5.05kV |
| Mount | Surface Mount |
| Number of Circuits | 5 |
| Number of Contacts | 5 |
| Number of Positions | 5 |
| Number of Rows | 1 |
| Orientation | Right Angle |
| Package Quantity | 1700 |
| Packaging | Tape and Reel |
| Pitch | 1mm |
| Plating | Tin |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | Pico-Clasp |
| Termination | Solder |
| Voltage Rating | 50V |
| Voltage Rating (AC) | 50V |
Compliance
| RoHS | Compliant |
Datasheet
Molex 501568-0507 Datasheet
Download the complete datasheet for Molex 501568-0507 to view detailed technical specifications.
No datasheet is available for this part.

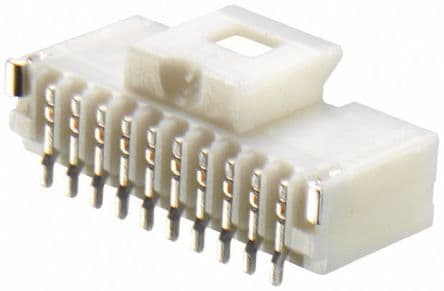

Product Images
