Vertical male header connector with 12 contacts arranged in 2 rows, featuring a 2mm pitch and 0.079-inch row spacing. This through-hole mount component offers a 2A current rating and a maximum operating temperature of 85°C. Constructed with brass contacts plated in tin and copper, it provides a secure solder termination and a locking feature. The natural colored housing ensures ROHS compliance.
Current Rating2A
MountingThrough Hole
Quick Jump:
Technical Specifications
Molex 501645-1220 technical specifications.
General
| Color | Natural |
| Contact Gender | Male |
| Contact Material | Brass |
| Contact Plating | Tin, Copper |
| Contact Type | Male Pin |
| Current Rating | 2A |
| Depth | 8.2mm |
| Gender | Male |
| Glow Wire Compliant | Non-compliant |
| Housing Color | Natural |
| Length | 14mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -25°C |
| Max Voltage Rating (AC) | 250V |
| Max Voltage Rating (DC) | 250.25kV |
| Mount | Through Hole |
| Number of Circuits | 12 |
| Number of Contacts | 12 |
| Number of Positions | 12 |
| Number of Rows | 2 |
| Orientation | Vertical |
| Package Quantity | 1050 |
| Packaging | Tray |
| Pitch | 2mm |
| Plating | Tin |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Row Spacing | 0.079inch |
| Series | iGrid™ 501645 |
| Termination | Solder |
| Voltage Rating (AC) | 250V |
| DC Rated Voltage | 250V |
Compliance
| RoHS | Compliant |
Datasheet
Molex 501645-1220 Datasheet
Download the complete datasheet for Molex 501645-1220 to view detailed technical specifications.
No datasheet is available for this part.

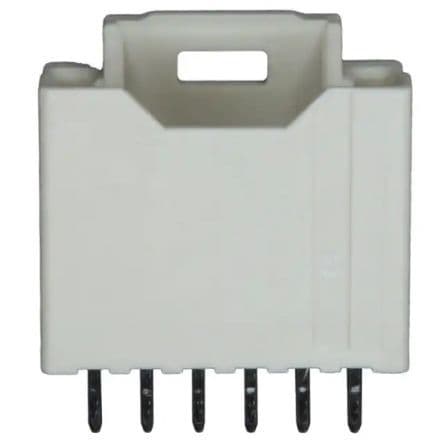

Product Images
