2mm pitch shrouded header with 30 positions and 2 rows, featuring a vertical orientation and through-hole mounting. This male pin connector utilizes brass contacts with tin plating over copper for mating, offering a 2A current rating and a maximum operating temperature of 85°C. Constructed with natural colored Nylon insulation, it boasts a UL94 V-0 flammability rating and a 250V AC/DC voltage rating.
Current Rating2A
MountingThrough Hole
Quick Jump:
Technical Specifications
Molex 501645-3020 technical specifications.
General
| Color | Natural |
| Contact Finish - Mating | TIN |
| Contact Material | Brass |
| Contact Plating | Tin, Copper |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating | 2A |
| Depth | 8.2mm |
| Flammability Rating | UL94 V-0 |
| Glow Wire Compliant | Non-compliant |
| Housing Color | Natural |
| Insulation Color | Natural |
| Insulation Material | Nylon |
| Length | 32mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -25°C |
| Max Voltage Rating (AC) | 250V |
| Max Voltage Rating (DC) | 250.25kV |
| Mount | Through Hole |
| Number of Circuits | 30 |
| Number of Contacts | 30 |
| Number of Positions | 30 |
| Number of Rows | 2 |
| Orientation | Vertical |
| Package Quantity | 1 |
| Packaging | Tray |
| Pitch | 2mm |
| RoHS Compliant | Yes |
| Row Spacing | 0.079inch |
| Series | iGrid 501645 |
| Termination | Solder |
| Voltage Rating (AC) | 250V |
| DC Rated Voltage | 250V |
Compliance
| RoHS | Compliant |
Datasheet
Molex 501645-3020 Datasheet
Download the complete datasheet for Molex 501645-3020 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

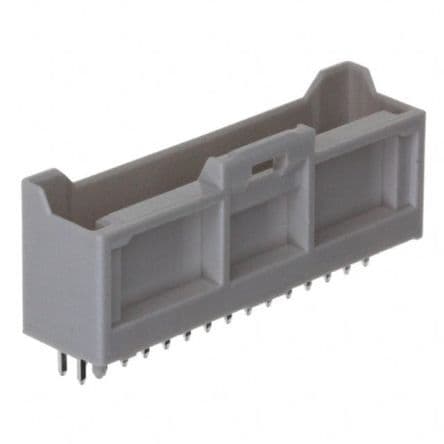

Product Images
