18-circuit, 2-row, right-angle male header assembly with a 2mm pitch. Features tin-plated brass male pin contacts and natural nylon insulation. Rated for 2A current and 250V AC/250.25kV DC, with a maximum operating temperature of 85°C. Through-hole mount termination with solder connection. UL94 V-0 flammability rating.
Current Rating2A
MountingThrough Hole
Quick Jump:
Technical Specifications
Molex 5018761840 technical specifications.
General
| Color | Natural |
| Contact Finish - Mating | TIN |
| Contact Gender | Male |
| Contact Material | Brass |
| Contact Plating | Tin |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating | 2A |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Glow Wire Compliant | Non-compliant |
| Insulation Color | Natural |
| Insulation Material | Nylon |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -25°C |
| Max Voltage Rating (DC) | 250.25kV |
| Mount | Through Hole |
| Number of Circuits | 18 |
| Number of Contacts | 18 |
| Number of Positions | 18 |
| Number of Rows | 2 |
| Orientation | Right Angle |
| Package Quantity | 400 |
| Packaging | Tray |
| Pitch | 2mm |
| Reach SVHC Compliant | Yes |
| RoHS Compliant | Yes |
| Row Spacing | 0.079inch |
| Series | iGrid™ 501876 |
| Termination | Solder |
| Voltage Rating (AC) | 250V |
Compliance
| RoHS | Compliant |
Datasheet
Molex 5018761840 Datasheet
Download the complete datasheet for Molex 5018761840 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

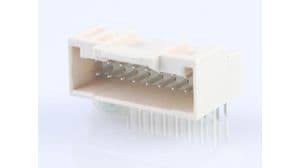

Product Images
