50-position, 1-row vertical header with surface mount termination. Features bronze/copper alloy contacts with tin plating, rated for 400mA and 50V AC/5.05kV DC. Constructed with Nylon, Glass, Polyamide housing and actuator, offering a -25°C to 85°C operating temperature range and UL94 V-0 flammability rating. This RoHS and REACH SVHC compliant component is supplied in tape and reel packaging.
Voltage Rating50V
Current Rating400mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Molex 501951-5000 technical specifications.
General
| Actuator Color | Brown |
| Actuator Material | Nylon, Glass, Polyamide |
| Contact Material | Bronze, Copper Alloy |
| Contact Plating | Tin |
| Current Rating | 400mA |
| Depth | 4.5mm |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Housing Color | White |
| Length | 27.8mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -25°C |
| Max Voltage Rating (AC) | 50V |
| Max Voltage Rating (DC) | 5.05kV |
| Mount | Surface Mount |
| Number of Circuits | 50 |
| Number of Contacts | 50 |
| Number of Positions | 50 |
| Number of Rows | 1 |
| Orientation | Vertical |
| Package Quantity | 100 |
| Packaging | Tape and Reel |
| Pitch | 1mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | Yes |
| RoHS Compliant | Yes |
| Series | 501951 |
| Termination | Solder |
| Voltage Rating | 50V |
| Wire/Cable Type | Straight |
Compliance
| RoHS | Compliant |
Datasheet
Molex 501951-5000 Datasheet
Download the complete datasheet for Molex 501951-5000 to view detailed technical specifications.
No datasheet is available for this part.

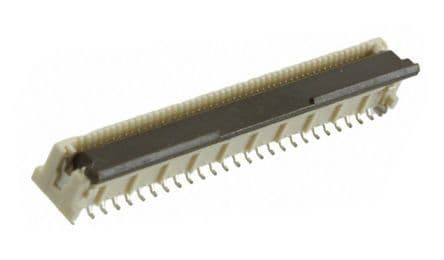

Product Images
