0.4mm pitch, 40-position, 2-row male header for board-to-board applications. Features a 1mm mated stacking height, 1.54mm depth, and 10.26mm length. Constructed with liquid crystal polymer insulation and bronze contacts with gold plating. Rated for 50V AC/DC, 300mA current, and 30 mating cycles. Surface mount termination with solder. Compliant with RoHS, REACH SVHC, and ELV standards, with low halogen content and UL94 V-0 flammability.
Voltage Rating50V
Current Rating300mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Molex 502430-4010 technical specifications.
General
| Contact Material | Bronze |
| Contact Plating | Gold |
| Current Rating | 300mA |
| Depth | 1.54mm |
| ELV | Compliant |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Glow Wire Compliant | Non-compliant |
| Halogen Free | Low Halogen |
| Housing Color | Black |
| Insulation Material | Polyester |
| Lead Pitch | 0.4mm |
| Length | 10.26mm |
| Mated Stacking Heights | 1mm |
| Material | Liquid Crystal Polymer |
| Mating Cycles | 30 |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -20°C |
| Max Voltage Rating (AC) | 50V |
| Max Voltage Rating (DC) | 5.05kV |
| Mount | Surface Mount |
| Number of Circuits | 40 |
| Number of Contacts | 40 |
| Number of Positions | 40 |
| Number of Rows | 2 |
| Orientation | Vertical |
| Package Quantity | 100 |
| Packaging | Tape and Reel |
| Pitch | 0.4mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | Yes |
| RoHS Compliant | Yes |
| Row Spacing | 1.71mm |
| Series | SlimStack |
| Stack Height | 1mm |
| Termination | Solder |
| Voltage Rating | 50V |
| Voltage Rating (AC) | 50V |
Compliance
| RoHS | Compliant |
Datasheet
Molex 502430-4010 Datasheet
Download the complete datasheet for Molex 502430-4010 to view detailed technical specifications.
No datasheet is available for this part.

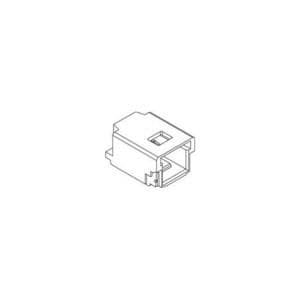

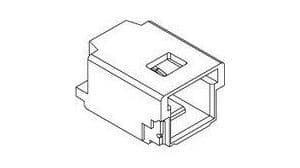

Product Images
