1.5mm pitch wire-to-board receptacle with 10 positions and 10 circuits. Features a vertical, surface mount orientation with SMD/SMT termination. Constructed with a beige resin insulation material and copper alloy contacts plated with tin. Rated for 2A current and 100V voltage, with a maximum operating temperature of 105°C. UL94 V-0 flammability rating.
PackageSIL
Voltage Rating100V
Current Rating2A
MountingSurface Mount
Quick Jump:
Technical Specifications
Molex 502584-1070 technical specifications.
General
| Package/Case | SIL |
| Color | Beige |
| Contact Finish - Mating | TIN |
| Contact Gender | Female |
| Contact Material | Copper Alloy, Copper, Tin |
| Contact Plating | Tin |
| Contact Type | Center Strip Contact |
| Current Rating | 2A |
| Flammability Rating | UL94 V-0 |
| Gender | Receptacle |
| Glow Wire Compliant | Non-compliant |
| Insulation Color | Beige |
| Insulation Material | Resin |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Circuits | 10 |
| Number of Contacts | 10 |
| Number of Positions | 10 |
| Number of Rows | 1 |
| Orientation | Vertical |
| Package Quantity | 900 |
| Packaging | Tape and Reel |
| Pitch | 1.5mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | CLIK-Mate™ 502584 |
| Termination | SMD/SMT |
| Voltage Rating | 100V |
Compliance
| RoHS | Compliant |
Datasheet
Molex 502584-1070 Datasheet
Download the complete datasheet for Molex 502584-1070 to view detailed technical specifications.
No datasheet is available for this part.

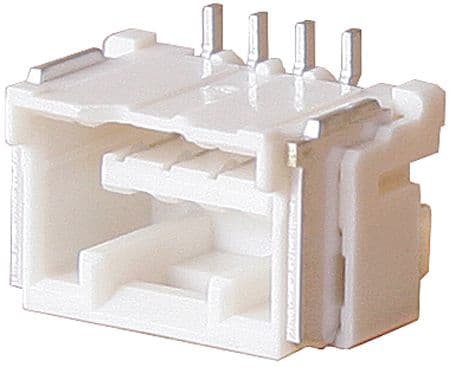

Product Images
