Right-angle FPC connector with 25 positions and 0.3mm pitch. Features dual contact location, gold-plated copper alloy contacts, and a 200mA current rating. Operates within a -40°C to 85°C temperature range and supports up to 50V. Housing is natural colored, with a black nylon, glass, polyamide actuator. Surface mount termination with solder.
Voltage Rating50V
Current Rating200mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Molex 502598-2591 technical specifications.
General
Actuator Color
Black
Actuator Material
Nylon, Glass, Polyamide
Contact Location
Dual
Contact Material
Copper Alloy, Copper, Bronze
Contact Plating
Gold
Current Rating
200mA
Depth
3.8mm
Flammability Rating
UL94 V-0
Gender
Receptacle
Halogen Free
Low Halogen
Housing Color
Natural
Length
9.6mm
Mating Cycles
10
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
50V
Max Voltage Rating (DC)
50V
Mount
Surface Mount
Number of Circuits
25
Number of Contacts
25
Number of Positions
25
Number of Rows
1
Orientation
Right Angle
Package Quantity
3000
Packaging
Tape and Reel
Pitch
0.3mm
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
BackFlip, Easy-On 502598
Termination
Solder
Voltage Rating
50V
Compliance
RoHS
Compliant
Datasheet
Molex 502598-2591 Datasheet
Download the complete datasheet for Molex 502598-2591 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

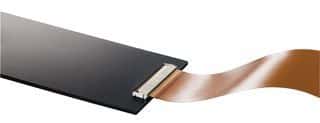

Product Images
