16-position, 2-row male header connector with a 1.5mm pitch and 1.5mm row spacing. Features straight orientation and crimp termination for 24-30AWG wire. Rated for 2A current and 100V voltage, operating between -25°C and 85°C. Beige housing, free hanging/cable mount, and RoHS compliant.
Voltage Rating100V
Current Rating2A
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
Molex 503149-1600 technical specifications.
General
| Color | Beige |
| Contact Type | Non-Gender Specific |
| Current Rating | 2A |
| Depth | 8.6mm |
| Gender | Male |
| Glow Wire Compliant | Non-compliant |
| Housing Color | Beige |
| Length | 16.3mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -25°C |
| Mount | Free Hanging, Cable |
| Number of Contacts | 16 |
| Number of Positions | 16 |
| Number of Rows | 2 |
| Orientation | Straight |
| Package Quantity | 200 |
| Packaging | Bulk |
| Pitch | 1.5mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Row Spacing | 1.5mm |
| Series | CLIK-Mate™ 503149 |
| Termination | Crimp |
| Voltage Rating | 100V |
| Wire Gauge (Max) | 30AWG |
| Wire Gauge (Min) | 24AWG |
Compliance
| RoHS | Compliant |
Datasheet
Molex 503149-1600 Datasheet
Download the complete datasheet for Molex 503149-1600 to view detailed technical specifications.
No datasheet is available for this part.

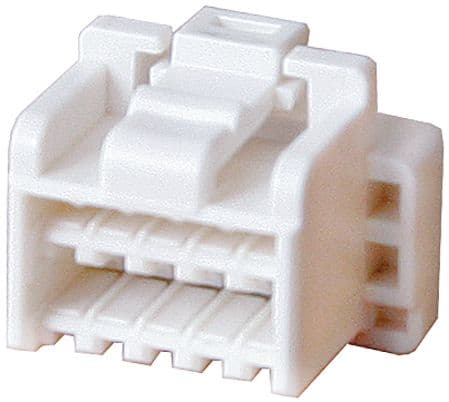

Product Images
