Right-angle receptacle card edge connector featuring a 0.5mm pitch and 10 positions/circuits. Constructed with a white nylon, glass, polyamide housing and bronze contacts with gold plating. Offers a 50V AC/DC voltage rating, 500mA current rating, and operates between -40°C and 85°C. UL94 V-0 flammability rating and low halogen compliance.
Voltage Rating50V
Current Rating500mA
Quick Jump:
Technical Specifications
Molex 503480-1000 technical specifications.
General
| Actuator Color | Black |
| Actuator Material | Nylon, Glass, Polyamide |
| Contact Material | Bronze |
| Contact Plating | Gold |
| Current Rating | 500mA |
| Depth | 3.6mm |
| ELV | Compliant |
| Flammability Rating | UL94 V-0 |
| Gender | Receptacle |
| Halogen Free | Low Halogen |
| Housing Color | White |
| Length | 6.7mm |
| Material | Bronze |
| Mating Cycles | 10 |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 50V |
| Max Voltage Rating (DC) | 50V |
| Number of Circuits | 10 |
| Number of Contacts | 10 |
| Number of Positions | 10 |
| Number of Rows | 1 |
| Orientation | Right Angle |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Pitch | 0.5mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Series | BackFlip, Easy-On 503480 |
| Stackable | No |
| Termination | Solder |
| Voltage Rating | 50V |
| Voltage Rating (AC) | 50V |
| Wire/Cable Type | Straight |
Compliance
| RoHS | Compliant |
Datasheet
Molex 503480-1000 Datasheet
Download the complete datasheet for Molex 503480-1000 to view detailed technical specifications.
No datasheet is available for this part.

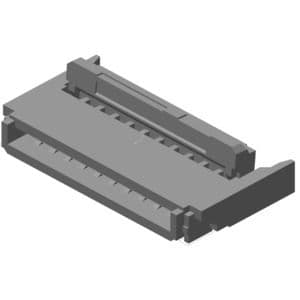

Product Images
