Right angle, 26-position, 1-row board-to-board connector with a 0.02-inch pitch. Features gold-plated bronze contacts and a white nylon, glass, polyamide insulator with UL94 V-0 flammability rating. This low halogen, lead-free receptacle offers a 500mA current rating and 50V voltage rating, operating between -40°C and 85°C. Surface mount termination with a locking mechanism, supplied in tape and reel packaging.
Voltage Rating50V
Current Rating500mA
Quick Jump:
Technical Specifications
Molex 503480-2600 technical specifications.
General
| Actuator Material | Nylon, Glass, Polyamide |
| Contact Material | Bronze |
| Contact Plating | Gold |
| Current Rating | 500mA |
| Flammability Rating | UL94 V-0 |
| Gender | Receptacle |
| Halogen Free | Low Halogen |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Number of Circuits | 26 |
| Number of Contacts | 26 |
| Number of Positions | 26 |
| Number of Rows | 1 |
| Orientation | Right Angle |
| Package Quantity | 750 |
| Packaging | Tape and Reel |
| Pitch | 0.02inch |
| RoHS Compliant | Yes |
| Series | BackFlip™, Easy-On™ 503480 |
| Stackable | No |
| Termination | Solder |
| Voltage Rating | 50V |
| Wire/Cable Type | Straight |
Compliance
| RoHS | Compliant |
Datasheet
Molex 503480-2600 Datasheet
Download the complete datasheet for Molex 503480-2600 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

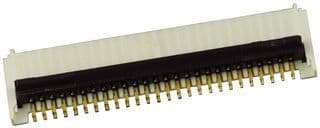

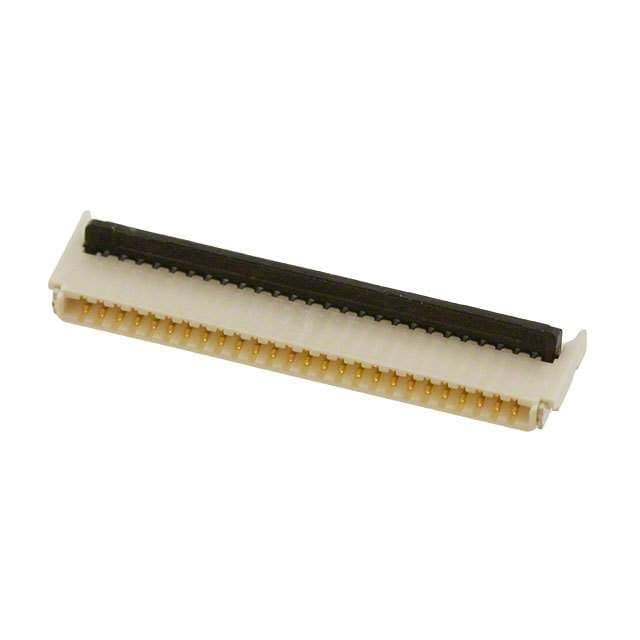

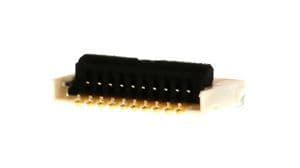

Product Images
