Vertical shrouded receptacle for board-to-board applications, featuring 12 positions and 2 rows with a 0.4mm pitch. This surface mount component offers a 0.7mm mated stacking height and a 2.6mm depth, constructed with gold-plated copper alloy contacts. Rated for 50V AC and 300mA, it operates within a temperature range of -40°C to 85°C. Supplied in tape and reel packaging, this RoHS compliant component is designed for SMD/SMT termination.
Current Rating300mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Molex 503548-1220 technical specifications.
General
| Contact Material | Copper Alloy |
| Contact Plating | Gold |
| Current Rating | 300mA |
| Depth | 2.6mm |
| Gender | Receptacle |
| Housing Color | Black |
| Length | 5.1mm |
| Mated Stacking Heights | 0.7mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 50V |
| Mount | Surface Mount |
| Number of Circuits | 12 |
| Number of Contacts | 12 |
| Number of Positions | 12 |
| Number of Rows | 2 |
| Orientation | Vertical |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Pitch | 0.4mm |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Row Spacing | 0.6mm |
| Series | SlimStack 503548 |
| Stack Height | 0.7mm |
| Termination | SMD/SMT |
| Voltage Rating (AC) | 50V |
Compliance
| RoHS | Compliant |
Datasheet
Molex 503548-1220 Datasheet
Download the complete datasheet for Molex 503548-1220 to view detailed technical specifications.
No datasheet is available for this part.

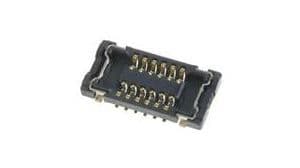

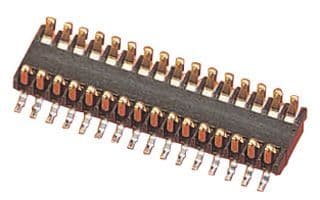

Product Images
