2-circuit, 1-row male header with a 1mm pitch, designed for surface mount termination. This right-angle connector features gold-plated copper alloy square pins and a black nylon insulator with a UL94 V-0 flammability rating. It offers a 1.5A current rating and a 150V voltage rating, operating within a -40°C to 105°C temperature range. The connector includes a locking feature and is low halogen compliant.
Voltage Rating150V
Current Rating1.5A
MountingSurface Mount
Quick Jump:
Technical Specifications
Molex 503763-0291 technical specifications.
General
| Color | Black |
| Contact Finish - Mating | GOLD |
| Contact Material | Copper Alloy |
| Contact Plating | Gold |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating | 1.5A |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Glow Wire Compliant | Non-compliant |
| Halogen Free | Low Halogen |
| Insulation Color | Black |
| Insulation Material | Nylon |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Circuits | 2 |
| Number of Contacts | 2 |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Orientation | Right Angle |
| Packaging | Cut Tape |
| Pitch | 1mm |
| Reach SVHC Compliant | Unknown |
| Series | Pico-Lock™ 503763 |
| Termination | Solder |
| Voltage Rating | 150V |
Compliance
| RoHS | Compliant |
Datasheet
Molex 503763-0291 Datasheet
Download the complete datasheet for Molex 503763-0291 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

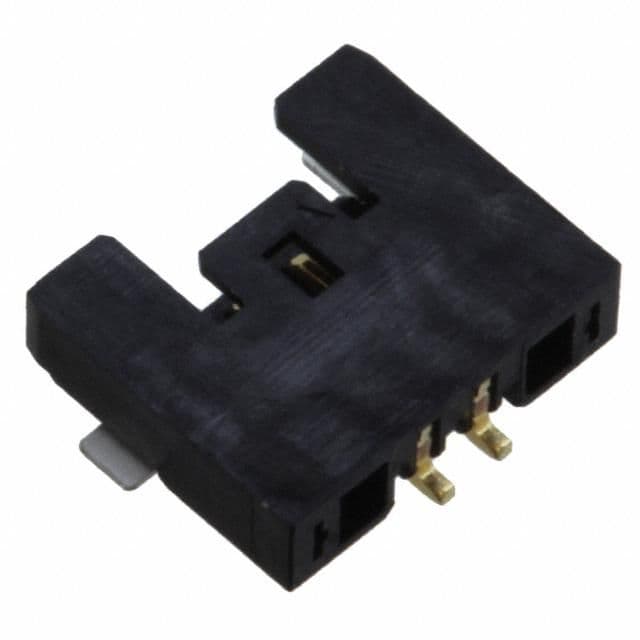

Product Images
