Technical Specifications
Molex 503764-0201 technical specifications.
General
| Package/Case | 0201 |
| Color | Black |
| Contact Type | Female Socket |
| Depth | 36.07mm |
| Gender | Female |
| Glow Wire Compliant | Non-compliant |
| Halogen Free | Low Halogen |
| Length | 167.64mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -25°C |
| Mount | Free Hanging, Cable |
| Number of Contacts | 2 |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Orientation | Straight |
| Packaging | Bulk |
| Pitch | 1mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Series | Pico-Lock 503764 |
| Termination | Crimp |
| Width | 137.16mm |
Compliance
| RoHS | Compliant |
Datasheet
Molex 503764-0201 Datasheet
Download the complete datasheet for Molex 503764-0201 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

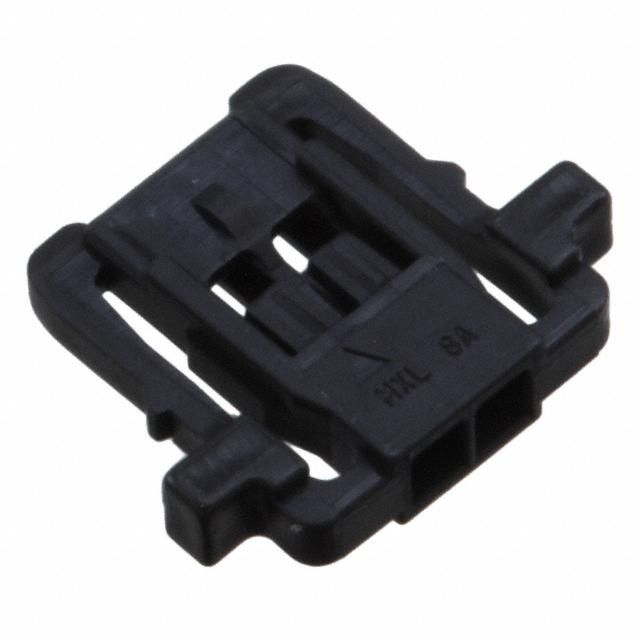

Product Images
