7-position, 1-row receptacle connector with a 1.5mm pitch, designed for crimp termination. This black, free-hanging, cable-mount housing features female blade sockets and a 3A current rating. Constructed with UL94 V-0 flammability and low halogen materials, it operates within a temperature range of -25°C to 85°C. Dimensions include a 14.45mm length, 1.92mm width, and 6.4mm depth.
Current Rating3A
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
Molex 504051-0701 technical specifications.
General
| Color | Black |
| Contact Type | Female Blade Socket |
| Current Rating | 3A |
| Depth | 6.4mm |
| Flammability Rating | UL94 V-0 |
| Gender | Receptacle |
| Glow Wire Compliant | Non-compliant |
| Halogen Free | Low Halogen |
| Length | 14.45mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -25°C |
| Mount | Free Hanging, Cable |
| Number of Contacts | 7 |
| Number of Positions | 7 |
| Number of Rows | 1 |
| Orientation | Straight |
| Package Quantity | 11000 |
| Packaging | Bulk |
| Pitch | 1.5mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | Pico-Lock 504051 |
| Termination | Crimp |
| Width | 1.92mm |
Compliance
| RoHS | Compliant |
Datasheet
Molex 504051-0701 Datasheet
Download the complete datasheet for Molex 504051-0701 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

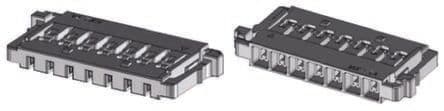

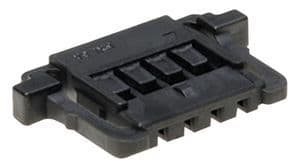

Product Images
