This 18-position rectangular surface mount connector features 18 male blade contacts with a tin plating and a brass contact material. It has a flammability rating of UL94 V-0 and is RoHS compliant. The connector is packaged on a tape and reel and has a right angle orientation. It is made with a nylon insulation material and has a natural insulation color.
MountingSurface Mount
Quick Jump:
Technical Specifications
Molex 504189-1870 technical specifications.
General
| Contact Finish - Mating | TIN |
| Contact Material | Brass |
| Contact Plating | Tin |
| Contact Shape | Rectangular |
| Contact Type | Male Blade |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Glow Wire Compliant | Non-compliant |
| Insulation Color | Natural |
| Insulation Material | Nylon |
| Mount | Surface Mount |
| Number of Circuits | 18 |
| Number of Contacts | 18 |
| Number of Positions | 18 |
| Number of Rows | 2 |
| Orientation | Right Angle |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | Micro-Lock 504189 |
| Termination | Solder |
Compliance
| RoHS | Compliant |
Datasheet
Molex 504189-1870 Datasheet
Download the complete datasheet for Molex 504189-1870 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

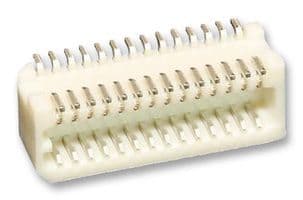

Product Images
