Technical Specifications
Molex 504189-2470 technical specifications.
General
| Color | Natural |
| Contact Material | Brass |
| Contact Plating | Tin |
| Contact Type | Blade Pin |
| Current Rating | 1.5A |
| Gender | Male |
| Glow Wire Compliant | Non-compliant |
| Mount | Surface Mount |
| Number of Circuits | 24 |
| Number of Contacts | 24 |
| Number of Positions | 24 |
| Number of Rows | 2 |
| Orientation | Right Angle |
| Packaging | Cut Tape |
| Pitch | 1.25mm |
| Reach SVHC Compliant | Unknown |
| Series | Micro-Lock™ 504189 |
| Termination | Solder |
| Voltage Rating | 50V |
Compliance
| RoHS | Compliant |
Datasheet
Molex 504189-2470 Datasheet
Download the complete datasheet for Molex 504189-2470 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

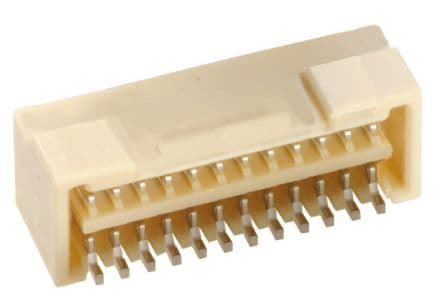

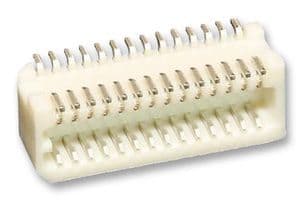

Product Images
