Technical Specifications

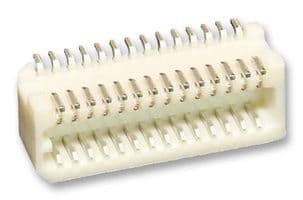

Molex 504189-3870 technical specifications.
General
| Contact Finish - Mating | TIN |
| Contact Material | Brass |
| Contact Plating | Tin |
| Contact Shape | Rectangular |
| Contact Type | Male Blade |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Glow Wire Compliant | Non-compliant |
| Insulation Color | Natural |
| Insulation Material | Nylon |
| Mount | Surface Mount |
| Number of Circuits | 38 |
| Number of Contacts | 38 |
| Number of Positions | 38 |
| Number of Rows | 2 |
| Orientation | Right Angle |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | Micro-Lock 504189 |
| Termination | Solder |
Compliance
| RoHS | Compliant |
Datasheet
Molex 504189-3870 Datasheet
Download the complete datasheet for Molex 504189-3870 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
