6-contact, 1-row female header connector with a 2mm pitch. Features a straight, free-hanging, cable mount orientation and crimp termination. Rated for 2A current and 125V AC/125.125kV DC. Housing is natural colored, lead-free, and RoHS compliant, with a maximum operating temperature of 85°C.
Current Rating2A
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
Molex 51004-0600 technical specifications.
General
Color
Natural
Contact Gender
Female
Contact Type
Female Socket
Current Rating
2A
Depth
5.8mm
Gender
Female
Glow Wire Compliant
Non-compliant
Halogen Free
Not Halogen Free
Housing Color
Natural
Lead Free
Lead Free
Length
14mm
Max Operating Temperature
85°C
Min Operating Temperature
-20°C
Max Voltage Rating (AC)
125V
Max Voltage Rating (DC)
125.125kV
Mount
Free Hanging, Cable
Number of Contacts
6
Number of Positions
6
Number of Rows
1
Orientation
Straight
Package Quantity
1
Packaging
Bulk
Pitch
2mm
RoHS Compliant
Yes
Series
MicroBlade™ 51004
Termination
Crimp
Compliance
RoHS
Compliant
Datasheet
Molex 51004-0600 Datasheet
Download the complete datasheet for Molex 51004-0600 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

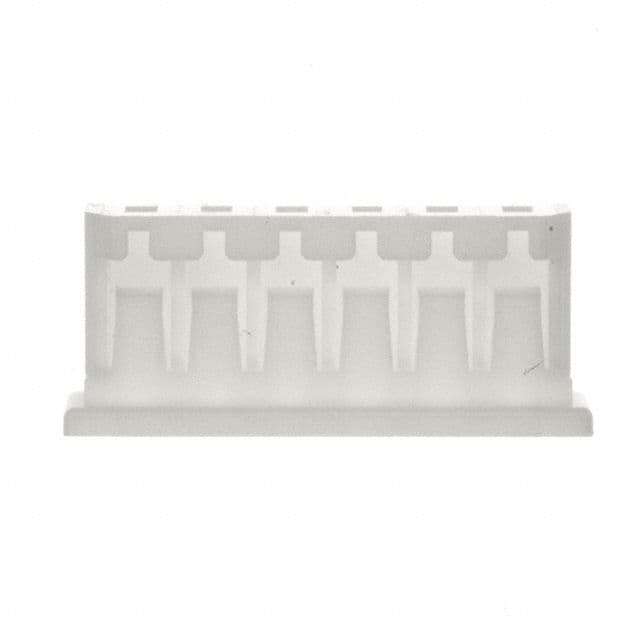

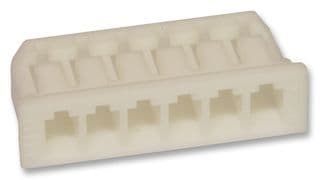

Product Images
