Female header connector featuring 11 contacts in a single row with a 2mm pitch. This straight, free-hanging, cable-mount plug offers a 2A current rating and a maximum operating voltage of 125V AC / 125.125kV DC. Constructed with lead-free, RoHS-compliant materials, it operates within a temperature range of -20°C to 85°C.
Current Rating2A
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
Molex 51004-1100 technical specifications.
General
Color
Natural
Contact Gender
Female
Contact Type
Female Socket
Current Rating
2A
Depth
5.8mm
Gender
Female
Glow Wire Compliant
Non-compliant
Housing Color
Natural
Lead Free
Lead Free
Length
24mm
Max Operating Temperature
85°C
Min Operating Temperature
-20°C
Max Voltage Rating (AC)
125V
Max Voltage Rating (DC)
125.125kV
Mount
Free Hanging, Cable
Number of Contacts
11
Number of Positions
11
Number of Rows
1
Orientation
Straight
Package Quantity
1
Packaging
Bulk
Pitch
2mm
Radiation Hardening
No
RoHS Compliant
Yes
Series
MicroBlade™ 51004
Termination
Crimp
Compliance
RoHS
Compliant
Datasheet
Molex 51004-1100 Datasheet
Download the complete datasheet for Molex 51004-1100 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

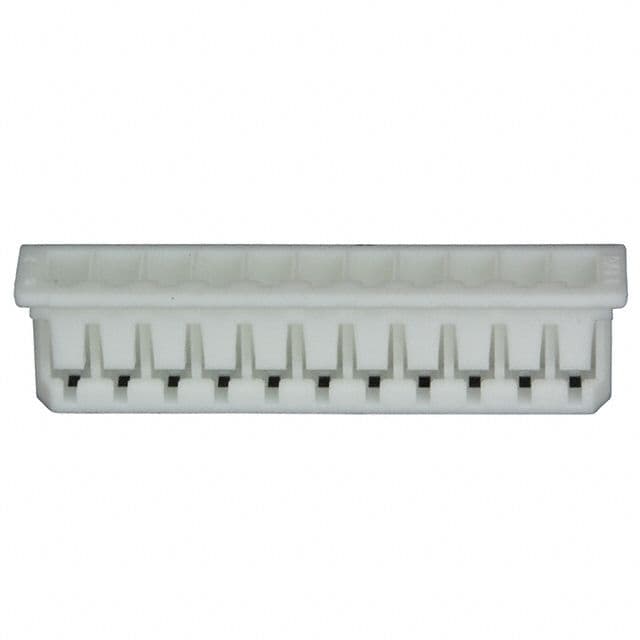

Product Images
