2-position, 1-row male header connector with a 2mm pitch. Features male pin contacts and a straight, free-hanging, cable mount orientation. Rated for 2A current and operates within a temperature range of -40°C to 105°C. Includes a locking mechanism and natural colored insulator. RoHS compliant.
Current Rating2A
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
Molex 51006-0200 technical specifications.
General
Color
Natural
Contact Gender
Male
Contact Type
Male Pin
Current Rating
2A
Depth
10.8mm
Gender
Male
Housing Color
Natural
Lead Free
Lead Free
Length
8mm
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Mount
Free Hanging, Cable
Number of Contacts
2
Number of Positions
2
Number of Rows
1
Orientation
Straight
Package Quantity
1
Packaging
Bulk
Pitch
2mm
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
51006
Termination
Crimp
Width
2.7mm
Compliance
RoHS
Compliant
Datasheet
Molex 51006-0200 Datasheet
Download the complete datasheet for Molex 51006-0200 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

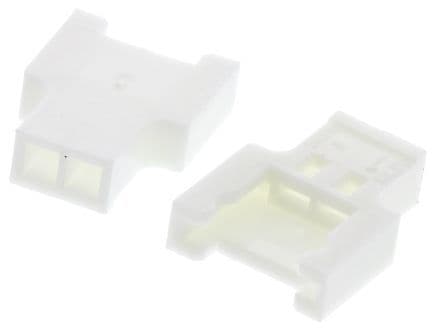

Product Images
