22-circuit, 2-row vertical receptacle connector featuring J-leads and solder tabs for board-to-board and mezzanine applications. Constructed with bronze contacts and gold plating, it offers a 0.4mm pitch and 1.1mm row spacing. Rated for 50V AC/DC and 300mA, this surface-mount component operates within a temperature range of -25°C to 85°C. The black housing is UL94 V-0 flammability rated and low halogen.
Current Rating300mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Molex 51338-2274 technical specifications.
General
| Color | Black |
| Contact Material | Bronze |
| Contact Plating | Gold |
| Current Rating | 300mA |
| Depth | 3.4mm |
| ELV | Compliant |
| Flammability Rating | UL94 V-0 |
| Gender | Receptacle |
| Glow Wire Compliant | Non-compliant |
| Halogen Free | Low Halogen |
| Housing Color | Black |
| Mated Stacking Heights | 1.5mm |
| Material | Bronze |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -25°C |
| Max Voltage Rating (AC) | 50V |
| Mount | Surface Mount |
| Number of Circuits | 22 |
| Number of Contacts | 22 |
| Number of Positions | 22 |
| Number of Rows | 2 |
| Orientation | Vertical |
| Package Quantity | 625 |
| Packaging | Tape and Reel |
| Pitch | 0.4mm |
| Plating | Gold |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Row Spacing | 1.1mm |
| Series | SlimStack 51338 |
| Termination | Solder |
| Voltage Rating (AC) | 50V |
| DC Rated Voltage | 50V |
Compliance
| RoHS | Compliant |
Datasheet
Molex 51338-2274 Datasheet
Download the complete datasheet for Molex 51338-2274 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

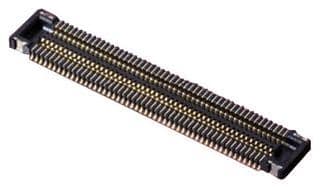

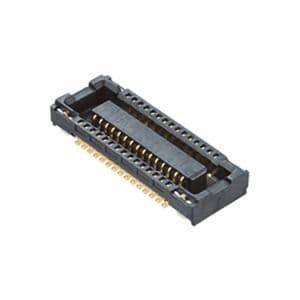

Product Images
