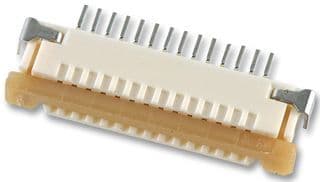

Vertical FPC connector with 24 positions and 1mm pitch. Features bronze contacts with tin plating, a 1A current rating, and a 50V voltage rating. Constructed with a polyester actuator and rated UL94 V-0 for flammability. Operates within a temperature range of -20°C to 80°C. Solder termination for PCB mounting.
Voltage Rating50V
Current Rating1A
Quick Jump:
Technical Specifications
Molex 52030-2429 technical specifications.
General
Actuator Material
Polyester
Contact Material
Bronze
Contact Plating
Tin
Current Rating
1A
Depth
3.5mm
Flammability Rating
UL94 V-0
Gender
Female
Length
29.3mm
Max Operating Temperature
80°C
Min Operating Temperature
-20°C
Max Voltage Rating (AC)
50V
Number of Circuits
24
Number of Contacts
24
Number of Positions
24
Number of Rows
1
Orientation
Vertical
Package Quantity
100
Packaging
Tray
Pitch
1mm
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
52030
Stackable
No
Termination
Solder
Voltage Rating
50V
Compliance
RoHS
Compliant
Datasheet
Molex 52030-2429 Datasheet
Download the complete datasheet for Molex 52030-2429 to view detailed technical specifications.
