1mm pitch, right-angle, surface mount card edge connector featuring 16 contacts in a single row. This female receptacle offers a 50V voltage rating and a 500mA current rating, with bronze contacts plated in tin. Constructed with a natural, UL94 V-0 rated insulator, it operates between -20°C and 85°C and is RoHS compliant. The connector is supplied on tape and reel for efficient assembly.
Voltage Rating50V
Current Rating500mA
Quick Jump:
Technical Specifications
Molex 52271-1679 technical specifications.
General
| Contact Material | Bronze |
| Contact Plating | Tin |
| Current Rating | 500mA |
| Depth | 6.7mm |
| ELV | Compliant |
| Flammability Rating | UL94 V-0 |
| Gender | Receptacle |
| Housing Color | Natural |
| Length | 22.3mm |
| Material | Bronze |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -20°C |
| Max Voltage Rating (AC) | 50V |
| Max Voltage Rating (DC) | 50V |
| Number of Circuits | 16 |
| Number of Contacts | 16 |
| Number of Poles | 16 |
| Number of Positions | 16 |
| Number of Rows | 1 |
| Orientation | Right Angle |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Pitch | 1mm |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | 52271 |
| Stackable | No |
| Termination | Solder |
| Voltage Rating | 50V |
| Voltage Rating (AC) | 50V |
| DC Rated Voltage | 50V |
| Wire/Cable Type | Flat Flex |
Compliance
| RoHS | Compliant |
Datasheet
Molex 52271-1679 Datasheet
Download the complete datasheet for Molex 52271-1679 to view detailed technical specifications.
No datasheet is available for this part.

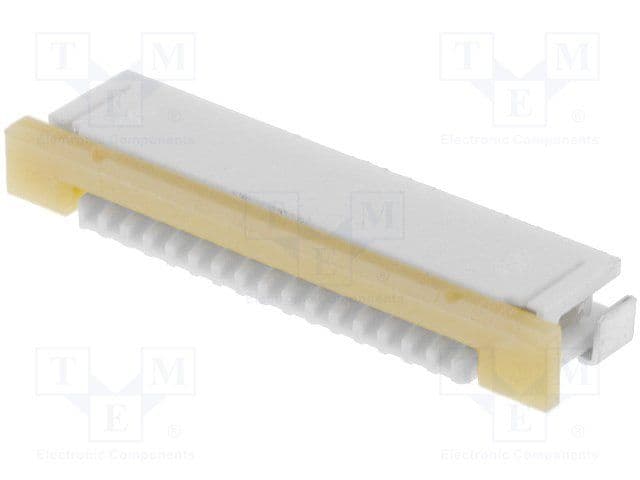

Product Images
