Right-angle FFC-FPC receptacle with 17 positions and 17 circuits. Features lower surface contact type, 1mm pitch, and SMD/SMT termination. Contact material is bronze with tin and gold plating. Rated for 500mA current and 50V voltage (AC/DC), with a maximum operating temperature of 85°C. Compliant with RoHS and UL94 V-0 flammability rating.
Voltage Rating50V
Current Rating500mA
Quick Jump:
Technical Specifications
Molex 52271-1779 technical specifications.
General
Contact Material
Bronze
Contact Plating
Tin, Gold
Current Rating
500mA
ELV
Compliant
Flammability Rating
UL94 V-0
Gender
Receptacle
Material
Bronze
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Voltage Rating (DC)
5.05kV
Number of Circuits
17
Number of Contacts
17
Number of Positions
17
Number of Rows
1
Orientation
Right Angle
Package Quantity
1000
Packaging
Tape and Reel
Pitch
1mm
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
52271
Stackable
No
Termination
SMD/SMT
Voltage Rating
50V
Voltage Rating (AC)
50V
Wire/Cable Type
Flat Flex
Compliance
RoHS
Compliant
Datasheet
Molex 52271-1779 Datasheet
Download the complete datasheet for Molex 52271-1779 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

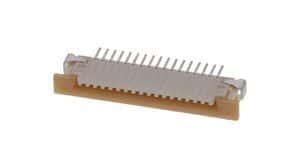

Product Images
