12-position, 1-row female card edge connector with 1mm pitch. Features surface mount termination, gold and tin plated bronze contacts, and a 500mA current rating. This vertical receptacle offers a 50V AC/DC voltage rating and operates between -20°C and 85°C. Housing is natural colored, UL94 V-0 flammability rated, and the component is RoHS and REACH compliant.
Voltage Rating50V
Current Rating500mA
Quick Jump:
Technical Specifications
Molex 52559-1252 technical specifications.
General
| Contact Material | Bronze |
| Contact Plating | Gold, Tin |
| Current Rating | 500mA |
| Depth | 3.5mm |
| ELV | Compliant |
| Flammability Rating | UL94 V-0 |
| Gender | Receptacle |
| Height | 3.9mm |
| Housing Color | Natural |
| Length | 11.7mm |
| Max Current Rating | 500mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -20°C |
| Max Voltage Rating (AC) | 50V |
| Max Voltage Rating (DC) | 5.05kV |
| Number of Circuits | 12 |
| Number of Contacts | 12 |
| Number of Positions | 12 |
| Number of Rows | 1 |
| Orientation | Vertical |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Pitch | 1mm |
| Plating | Tin |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | 52559 |
| Stackable | No |
| Termination | Solder |
| Voltage Rating | 50V |
| Voltage Rating (AC) | 50V |
| DC Rated Voltage | 50V |
Compliance
| RoHS | Compliant |
Datasheet
Molex 52559-1252 Datasheet
Download the complete datasheet for Molex 52559-1252 to view detailed technical specifications.
No datasheet is available for this part.

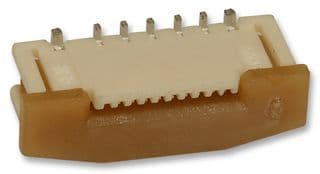

Product Images
