22-position, 1mm pitch FPC connector receptacle with straight, surface mount termination. Features a polyphenylene actuator and bronze contacts with tin/lead plating. Rated for 50V DC and 500mA current, operating between -40°C and 85°C. Housing is natural colored, UL94 V-0 flammability rated, and RoHS compliant. Supplied in tape and reel packaging.
Voltage Rating50V
Current Rating500mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Molex 52559-2270 technical specifications.
General
Actuator Material
Polyphenylene
Contact Material
Bronze
Contact Plating
Tin, Lead
Current Rating
500mA
Depth
3mm
Flammability Rating
UL94 V-0
Gender
Receptacle
Housing Color
Natural
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Surface Mount
Number of Contacts
22
Number of Positions
22
Number of Rows
1
Orientation
Straight
Package Quantity
1000
Packaging
Tape and Reel
Pitch
1mm
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
52559
Termination
Solder
Voltage Rating
50V
DC Rated Voltage
50V
Wire/Cable Type
Straight
Compliance
RoHS
Compliant
Datasheet
Molex 52559-2270 Datasheet
Download the complete datasheet for Molex 52559-2270 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

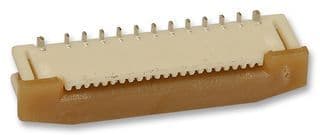

Product Images
