Technical Specifications
Molex 52610-2033 technical specifications.
General
| Contact Material | Bronze |
| Contact Plating | Tin, Silver |
| Current Rating | 1A |
| Flammability Rating | UL94 V-0 |
| Gender | Receptacle |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Number of Circuits | 20 |
| Number of Contacts | 20 |
| Number of Positions | 20 |
| Number of Rows | 1 |
| Orientation | Vertical |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Pitch | 1mm |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | 52610 |
| Stackable | No |
| Termination | SMD/SMT |
| Voltage Rating | 125V |
Compliance
| RoHS | Compliant |
Datasheet
Molex 52610-2033 Datasheet
Download the complete datasheet for Molex 52610-2033 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

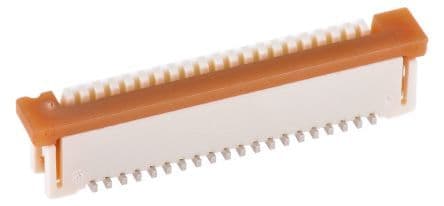

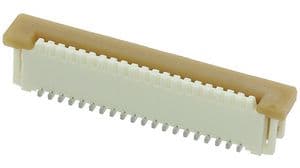

Product Images
