1.00mm pitch FFC/FPC connector, right-angle, surface mount, non-ZIF receptacle with 18 circuits and top contact location. Features bronze contacts with tin plating, rated for 50V DC and 500mA current. Constructed from bronze material, it meets UL94 V-0 flammability standards and is RoHS compliant. Supplied on tape and reel for automated assembly.
Voltage Rating50V
Current Rating500mA
Quick Jump:
Technical Specifications
Molex 52793-1870 technical specifications.
General
Contact Location
Top
Contact Material
Bronze
Contact Plating
Tin
Current Rating
500mA
ELV
Compliant
Flammability Rating
UL94 V-0
Gender
Receptacle
Material
Bronze
Number of Circuits
18
Number of Contacts
18
Number of Positions
18
Number of Rows
1
Orientation
Right Angle
Package Quantity
1000
Packaging
Tape and Reel
Pitch
1mm
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
52793
Stackable
No
Termination
SMD/SMT
Voltage Rating
50V
DC Rated Voltage
50V
Compliance
RoHS
Compliant
Datasheet
Molex 52793-1870 Datasheet
Download the complete datasheet for Molex 52793-1870 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

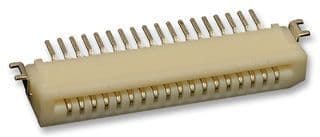

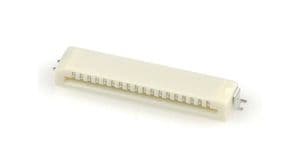

Product Images
